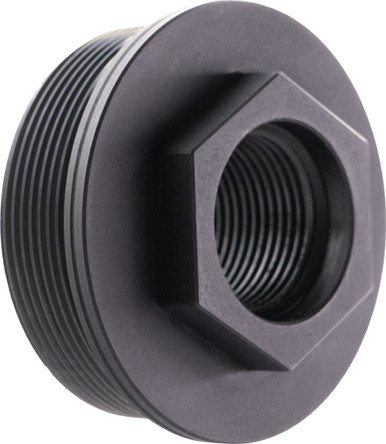

CMMG’s ZEROED 5/8-24 Direct Thread HUB Mount (product 11DB016) is a simple interface between a 5/8-24 muzzle and any suppressor that uses the 1.375-24 HUB (Bravo) thread. Direct-thread users can keep a common HUB can and swap this mount onto .30-caliber-class hosts without a proprietary QD muzzle device.
The mount is 17-4 stainless with a nitride finish. Overall length is 0.86 inch and it adds about 0.29 inch once installed. Diameter is 1.5 inches; weight is 2.5 ounces. 7/8-inch wrench flats take a standard open-end wrench for install and removal.
Confirm host thread pitch before mounting. This part is a mount only.
- Manufacturer: CMMG — ZEROED HUB mount, #11DB016, UPC 840442507923
- Muzzle thread: 5/8-24
- HUB: 1.375-24
- Material / finish: 17-4 stainless, nitride
- Size: 0.86 in OAL; 0.29 in added length; 1.5 in diameter; 2.5 oz
- Wrench: 7/8 in flats
Internal Reference:
11DB016
Barcode:
840442507923
| Brand: CMMG |
| Model: Zeroed |
| Part Type: Suppressor Adapter |
Check Shipping Availability
This product may have shipping restrictions in some states.
