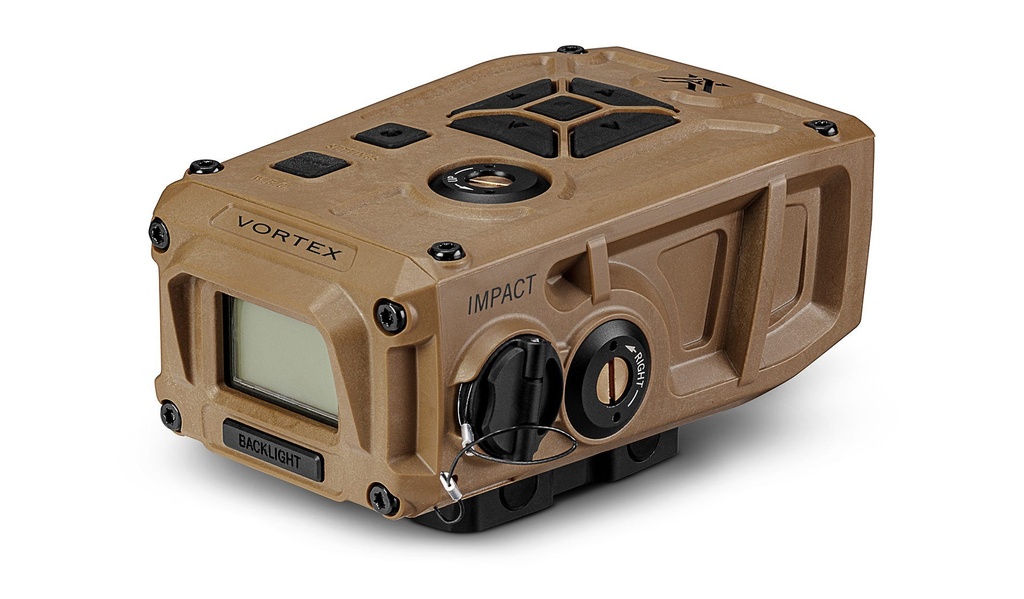

Vortex Impact 4000 – Ballistic Rail-Mounted Laser Rangefinder (LRF-IMP4000)
A rangefinder that lives on the rifle: up to 4,000 yards reflective, on-board GeoBallistics solver, compass plus temperature, pressure, and humidity sensors, and Vortex's Wind Bearing Capture mode so you can get a drop/wind solution without coming off the gun. 4.6" x 3.2" x 2.5", 16.0 oz, Picatinny mount, CR123 powered. SKU LRF-IMP4000, UPC 843829136778.
Range and Modes
- Reflective: up to 4,000 yards (ELR). Tree: up to 2,500 yards. Deer: up to 1,500 yards. Minimum 5 yards.
- Accuracy: 0.5 yards at 100 yards.
- LOS (line of sight), HCD (angle-compensated), and BAL (range plus wind/drop solution).
- Normal and ELR target modes. ELR takes a bit longer to stretch the max ranges.
Ballistics on the Gun
The Impact 4000 runs an integrated GeoBallistics solver with a full bullet library, ten preloaded cartridge profiles you can customize, and a built-in range-card generator (up to ten saved cards). It pairs over Bluetooth with the GeoBallistics app and can take weather from third-party meters or local stations. A Bluetooth remote is in the box so you can range without shifting your firing grip.
Mount and Zero
It clamps to a Picatinny rail, or to rings that have a diving-board mount. Vortex calls out a quick, reliable zero that holds under recoil. The Precision Matched Diving Board Mount is a separate accessory, not in this box.
What's in the Box
- Bluetooth remote
- Bluetooth remote mounting kit
- Easy Zero tool kit
- SureFit cover
- Lens cloth and custom tools
- CR123 battery
- CR2032 Bluetooth remote battery
Vortex Impact 4000 Specifications
| Manufacturer | Vortex Optics |
| Model | Impact 4000 Ballistic Rail-Mounted Laser Rangefinder |
| SKU | LRF-IMP4000 |
| UPC | 843829136778 |
| Range reflective | Up to 4,000 yds (ELR) |
| Range tree | Up to 2,500 yds |
| Range deer | Up to 1,500 yds |
| Minimum range | 5 yds |
| Accuracy | 0.5 yds @ 100 yds |
| Length | 4.6" |
| Width | 3.2" |
| Height | 2.5" |
| Weight | 16.0 oz (with battery) |
| Battery | CR123 |
| Mount | Picatinny; or rings with diving-board mount |
| Solver | Integrated GeoBallistics |
| Sensors | Compass; temperature, pressure, humidity |
| Warranty | Vortex VIP Unlimited Unconditional Lifetime Warranty |
Frequently Asked Questions
Does it need a phone to give a firing solution?
No. GeoBallistics, sensors, and Wind Bearing Capture run on the unit. Bluetooth to the GeoBallistics app is optional.
What battery does it take?
The rangefinder takes a CR123 (included). The Bluetooth remote takes a CR2032 (included).
Is a diving-board mount included?
A Picatinny mount is how it attaches. Vortex's Precision Matched Diving Board Mount is sold separately. Contact us if you need that mount too.
How far will it range a deer?
Vortex lists deer at up to 1,500 yards, trees 2,500, reflective 4,000 in ELR mode.
Internal Reference:
LRF-IMP4000
Barcode:
843829136778
