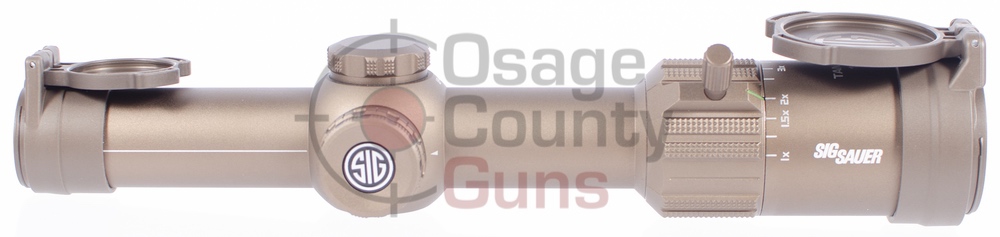

SIG SAUER Tango-MSR – Coyote, 1-8x24, 30mm, BDC8 (SOTM81200)

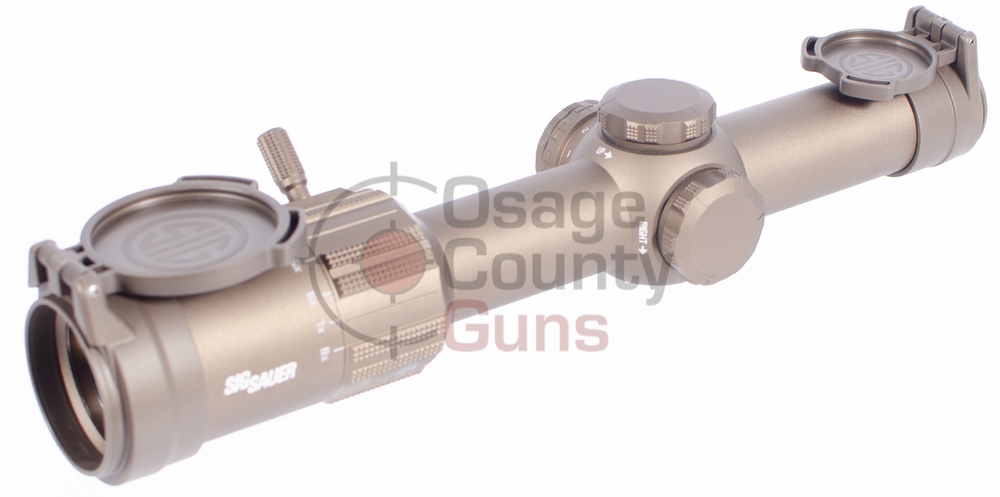

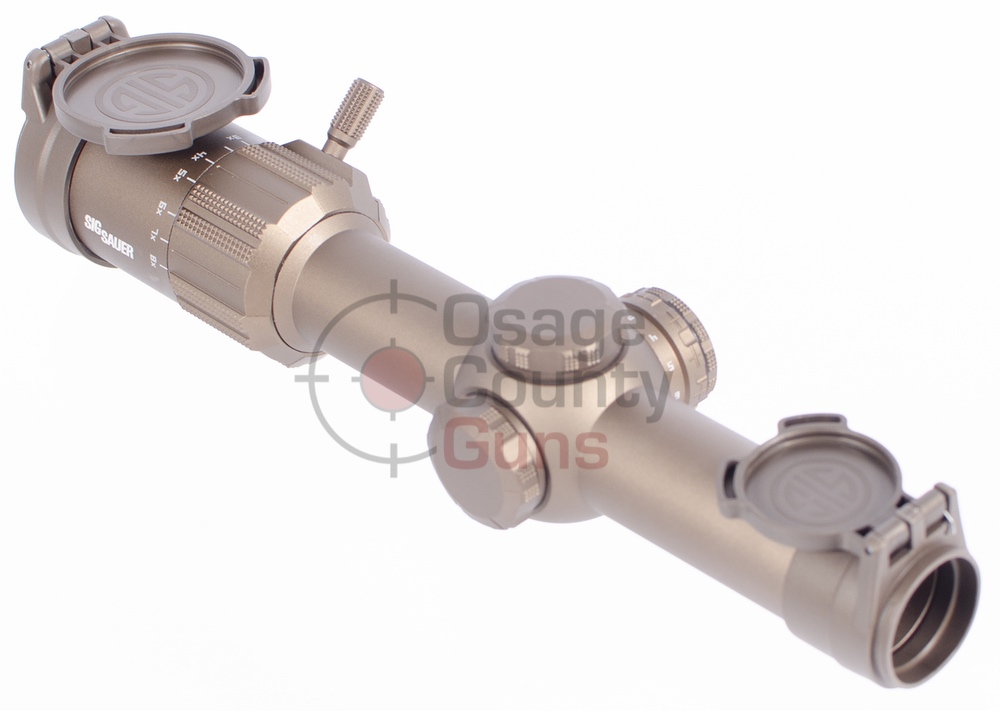

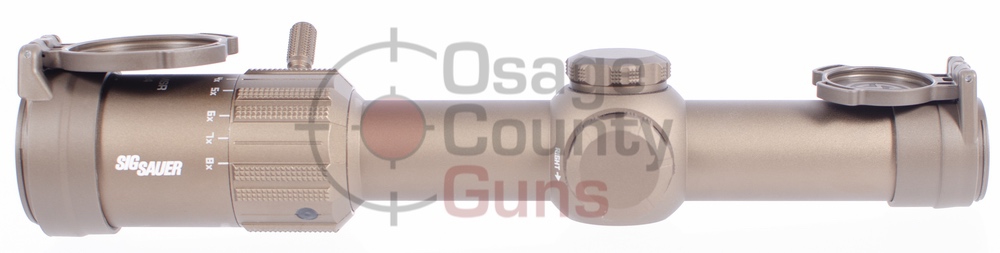

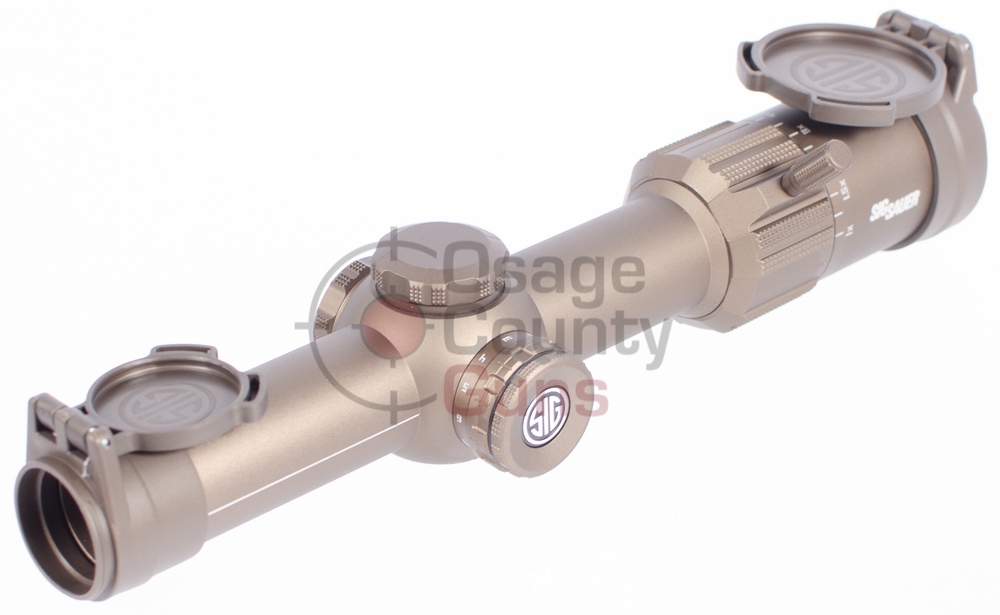

The Tango-MSR is SIG SAUER's 1-8x24 low-power variable optic built around a high-performance 8x optical system with low-dispersion glass, a second-focal-plane illuminated MSR BDC8 reticle, and a factory ALPHA-MSR cantilever mount so it is ready to hang on a rail. This configuration is Coyote on a 30mm maintube. SIG SAUER part SOTM81200, UPC 798681675623.

This listing is for the Tango-MSR Coyote 1-8x24 30mm BDC8 only.

Optical System and Reticle

SIG SAUER rates the glass for light transmission and edge clarity across the 1–8x range. The reticle is an illuminated MSR BDC8 in the second focal plane, with 11 brightness settings on a single CR2032. An integrated thread-in throw lever speeds magnification changes when you are moving between close and mid-range work.

• 1-8x magnification, 24mm objective
• 30mm maintube
• Illuminated MSR BDC8, second focal plane, 11 brightness levels

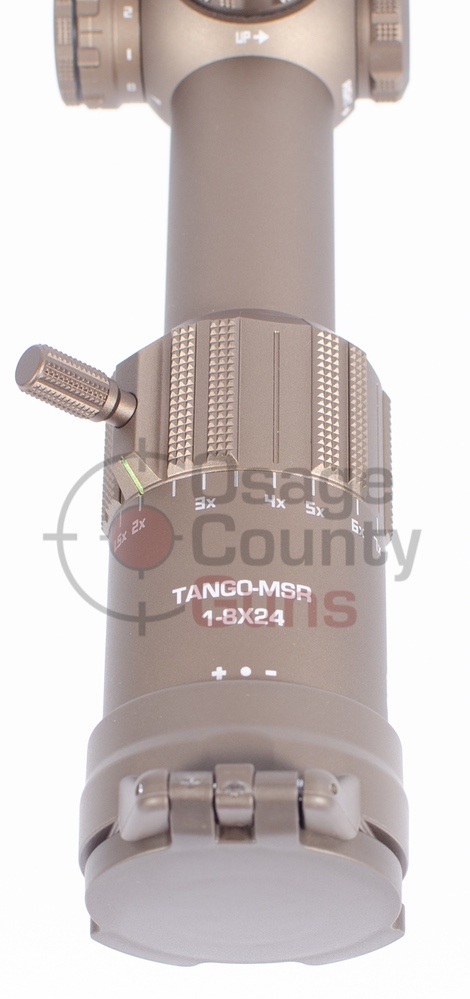

• Integrated thread-in throw lever
• Waterproof, shockproof, and fog-proof per SIG SAUER

Mount and Covers

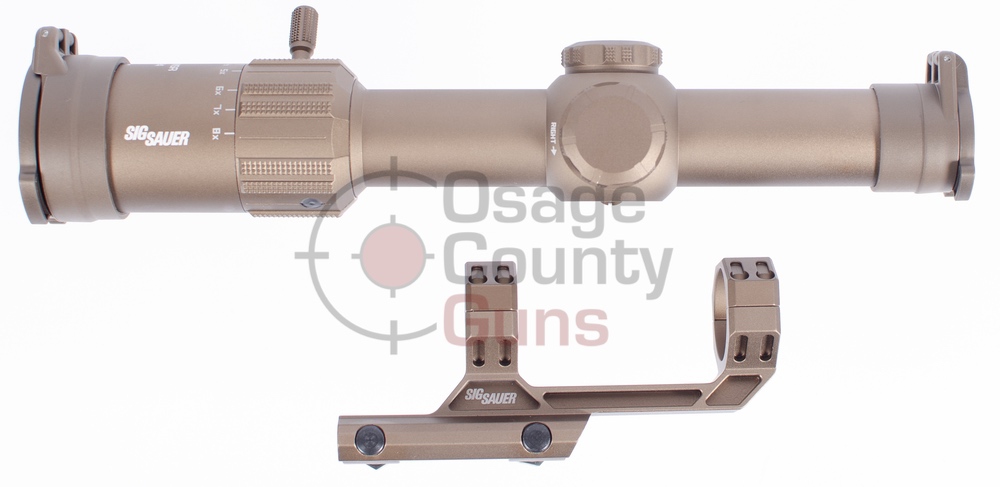

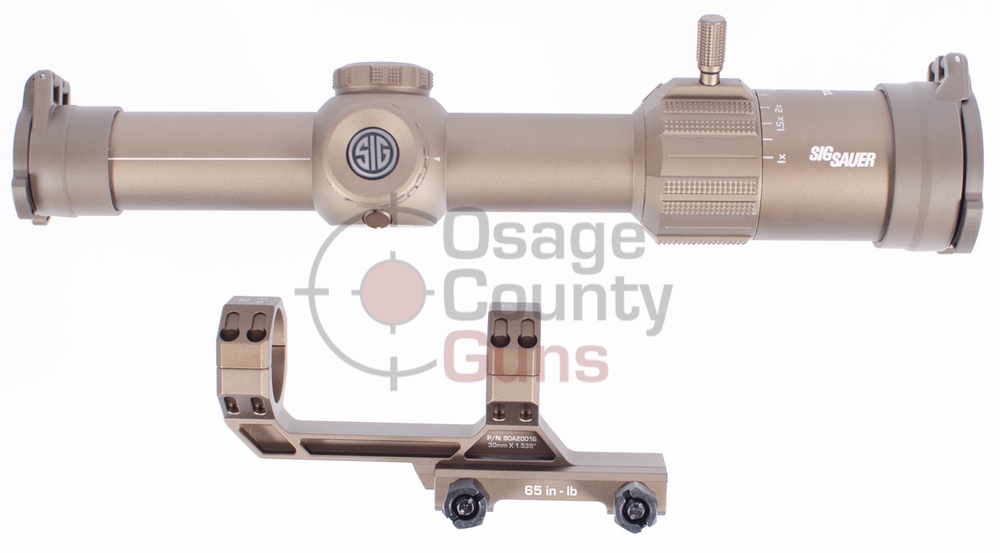

This optic ships with SIG's ALPHA-MSR one-piece aluminum cantilever mount and lay-flat flip-back lens covers. SIG lists the mount as included — the scope is set up as a ready-to-mount LPVO package rather than a bare tube.

Size and Adjustment Travel

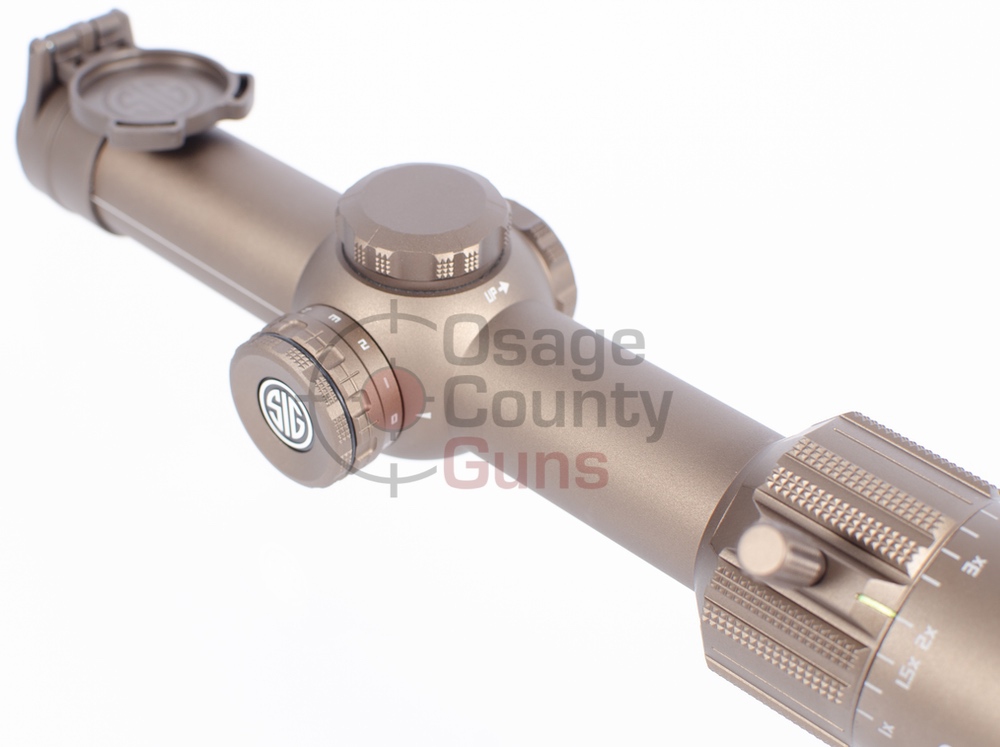

Published overall length is 10.5 inches. Weight is approximately 18.6 oz. Total elevation and windage travel are each 100 MOA, with 44 MOA per rotation. Eye relief is 3.93" at low power and 3.74" at high power. Field of view at 100 yards is 124.8 ft at 1x and 19.6 ft at 8x. Diopter range is ±2.5.

SIG SAUER Tango-MSR Specifications

What's Included

• Tango-MSR 1-8x24 riflescope, Coyote
• ALPHA-MSR one-piece aluminum cantilever mount
• Lay-flat flip-back lens covers
• Integrated thread-in throw lever

Frequently Asked Questions

What reticle is on this scope?
SIG SAUER lists an illuminated MSR BDC8 reticle in the second focal plane, with 11 brightness settings.

Does it come with a mount?
Yes. SIG includes the ALPHA-MSR one-piece aluminum cantilever mount with this LPVO.

What battery does the illumination use?
One CR2032.

Is this the Coyote 1-8x24 BDC8 configuration?
Yes. This listing is for the Tango-MSR Coyote 1-8x24 30mm BDC8 only — SIG part SOTM81200, UPC 798681675623.

What is the Infinite Guarantee?
SIG SAUER states Electro-Optics are covered by the Infinite Guarantee — an unlimited lifetime guarantee that is fully transferable.
