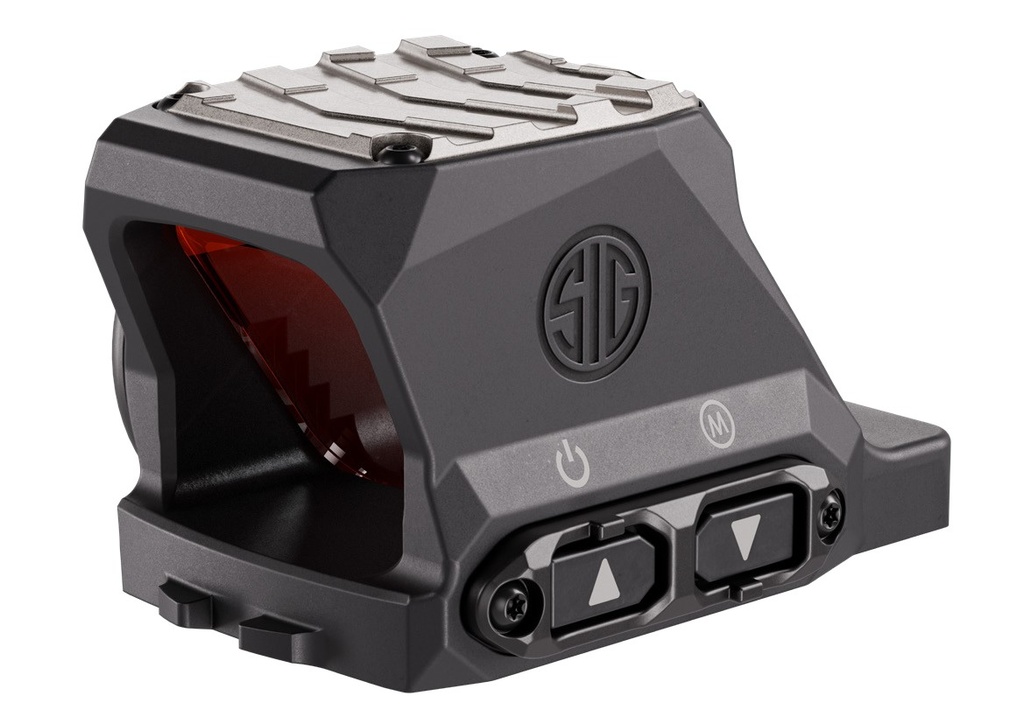

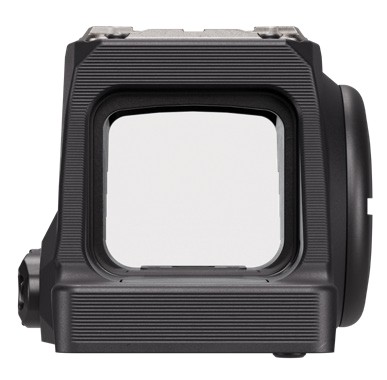

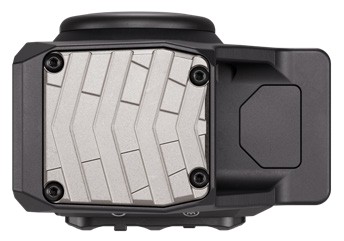

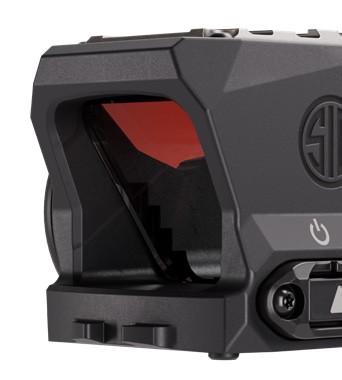

SIG Sauer XRAY5 Advanced Red Dot Sight, Enclosed, SIG-LOC Compact Footprint, 3.5 MOA, Black - SOX56300

The SIG SAUER XRAY5 is a fully enclosed, solid-state red dot built for duty-grade abuse. Instead of a moving emitter, it uses a rigid 225-pixel LED matrix, so you zero digitally by selecting individual pixels. There are no turrets to shift, and a 3.5 MOA dot comes up fast. This SOX56300 version mounts from underneath the slide using the SIG-LOC system for the strongest lockup in the industry on SIG-LOC-cut pistols.

Bluetooth LightFight pairs the XRAY5 with SIG weapon lights to automatically boost dot brightness when the light is on, and the free XRAY5 app unlocks multiple zero profiles and a round counter.

Features

• Ruggedized solid-state construction with no moving parts: a rigid 225-pixel red dot matrix that is impervious to shocks and impacts
• Patented Zero Distortion Optical System with a low deck height for backup co-witness with standard-height sights
• Digital Zero, multiple zero profiles, LightFight and Round Counter, fully customizable through the free XRAY5 app
• LightFight: Bluetooth pairing with SIG LightFight weapon lights automatically increases reticle brightness when the light is activated
• Fully enclosed, sealed and argon-purged optical system for ultimate protection from the elements
• 7075 aluminum housing with a Grade 5 titanium shield over the roof lens
• 15 brightness settings, including 2 optimized for Gen 3+ night vision
• Side-mounted CR2032 battery with a threaded cap, so you can change batteries without removing the optic
• Up to 10,000 hours of continuous runtime at medium brightness
• MOTAC motion-activated illumination and D.A.R.C. dark adaptive reticles and coatings
• IPX8 waterproof to 40 meters (132 ft), tested beyond 100,000 live-fire rounds, and survives multiple 8 ft drops onto concrete
• Designed, developed, tested and assembled in the USA

Specifications

• Manufacturer: SIG SAUER
• Model: XRAY5 Advanced Red Dot Sight
• SKU: SOX56300
• Mounting Footprint: SIG-LOC Compact
• Reticle: 3.5 MOA red dot
• Emitter: 225-pixel (15x15) LED matrix
• Clear Aperture: 24 mm (diagonal)
• Lens: Glass, roof asphere
• Housing: 7075 aluminum, Grade 5 titanium lens shield, black anodized
• Windage / Elevation Range: 80 MOA / 80 MOA
• Adjustment: Digital (button presses or XRAY app)
• Brightness Settings: 15 (13 day, 2 night vision)
• Battery: CR2032, side-mounted, slotted threaded cap
• Battery Life: Up to 10,000 hours at medium setting
• Water Resistance: IPX8 to 40 meters (132 ft)
• Length: 1.74 in
• Height: 1.20 in
• Width: 1.32 in
• Weight w/ Battery: 1.35 oz
