SIG Sauer XRAY5 Red Dot (PRO Footprint) & FOXTROT2R LightFight Weapon Light Combo Kit - SOXF53320

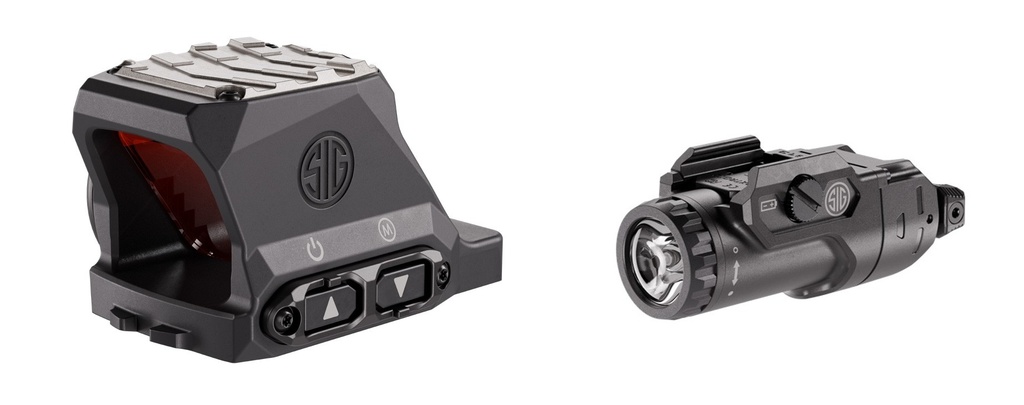

This combo kit pairs the SIG SAUER XRAY5 Advanced Red Dot Sight (SOX53300, DeltaPoint PRO footprint) with the FOXTROT2R LightFight weapon-mounted white light. The two talk to each other over Bluetooth LightFight: turn the light on and the XRAY5 automatically brightens its reticle, so your dot stays visible against a lit-up target.

The XRAY5 is a fully enclosed, solid-state red dot with a 225-pixel LED matrix, digital zero and a 3.5 MOA dot. The FOXTROT2R puts 700 lumens and 20,000 candela in a compact, rechargeable package with ambidextrous paddles and 4-position rail inserts.

XRAY5 Red Dot Features

• Ruggedized solid-state construction with no moving parts: a rigid 225-pixel red dot matrix that is impervious to shocks and impacts
• Patented Zero Distortion Optical System with a low deck height for backup co-witness with standard-height sights
• Digital Zero, multiple zero profiles, LightFight and Round Counter, fully customizable through the free XRAY5 app
• LightFight: Bluetooth pairing with SIG LightFight weapon lights automatically increases reticle brightness when the light is activated
• Fully enclosed, sealed and argon-purged optical system for ultimate protection from the elements
• 7075 aluminum housing with a Grade 5 titanium shield over the roof lens
• 15 brightness settings, including 2 optimized for Gen 3+ night vision
• Side-mounted CR2032 battery with a threaded cap, so you can change batteries without removing the optic
• Up to 10,000 hours of continuous runtime at medium brightness
• MOTAC motion-activated illumination and D.A.R.C. dark adaptive reticles and coatings
• IPX8 waterproof to 40 meters (132 ft), tested beyond 100,000 live-fire rounds, and survives multiple 8 ft drops onto concrete
• Designed, developed, tested and assembled in the USA

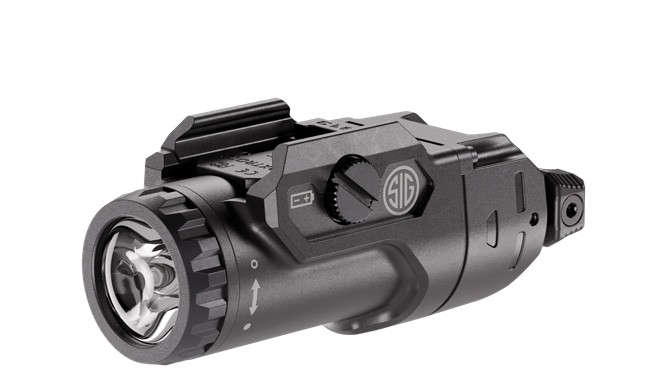

FOXTROT2R LightFight Features

• LightFight Bluetooth pairing with the XRAY5 automatically raises reticle brightness when the light is activated
• 700 peak lumens and 20,000 peak candela
• Ambidextrous activation paddles with momentary, latching and threshold modes
• Programmable activation with 3 user-selectable modes
• 4-position sliding rail inserts for a customizable fit
• Runs on a rechargeable 16340 Li-ion battery or a CR123A
• IPX7 waterproof, assembled in the USA

XRAY5 Specifications

• Manufacturer: SIG SAUER
• Model: XRAY5 Advanced Red Dot Sight
• SKU: SOX53300
• Mounting Footprint: DeltaPoint PRO
• Reticle: 3.5 MOA red dot
• Emitter: 225-pixel (15x15) LED matrix
• Clear Aperture: 24 mm (diagonal)
• Lens: Glass, roof asphere
• Housing: 7075 aluminum, Grade 5 titanium lens shield, black anodized
• Windage / Elevation Range: 80 MOA / 80 MOA
• Adjustment: Digital (button presses or XRAY app)
• Brightness Settings: 15 (13 day, 2 night vision)
• Battery: CR2032, side-mounted, slotted threaded cap
• Battery Life: Up to 10,000 hours at medium setting
• Water Resistance: IPX8 to 40 meters (132 ft)
• Length: 1.9 in
• Height: 1.17 in
• Width: 1.32 in
• Weight w/ Battery: 1.45 oz

FOXTROT2R Specifications

• Light: FOXTROT2R LightFight (SOF2RLF01)
• Peak Lumens: 700
• Peak Candela: 20,000
• Runtime: Up to 1.5 hours
• Battery: (1) 16340 rechargeable Li-ion or (1) CR123A
• Waterproof: IPX7
• Light Dimensions: 2.98 x 1.31 x 1.18 in
• Light Weight w/ Battery: 2.9 oz

In the Box

• XRAY5 Advanced Red Dot Sight, DeltaPoint PRO footprint (SOX53300)
• FOXTROT2R LightFight weapon light (SOF2RLF01)
