Vortex Defender-ST Enclosed Solar – 3 MOA Micro Red Dot (DFST-MRD3-E)
An enclosed-emitter micro dot with a solar panel on top and a battery in the side: 3 MOA dot (plus a 32 MOA circle you can run with it), 7075 aluminum housing, DeltaPoint Pro footprint, 1.82 inches long and 1.62 ounces. Battery-only runtime is 35,000 hours at setting 6; with solar Vortex rates it up to 150,000 hours. SKU DFST-MRD3-E, UPC 843829142854.
Enclosed Housing and Solar

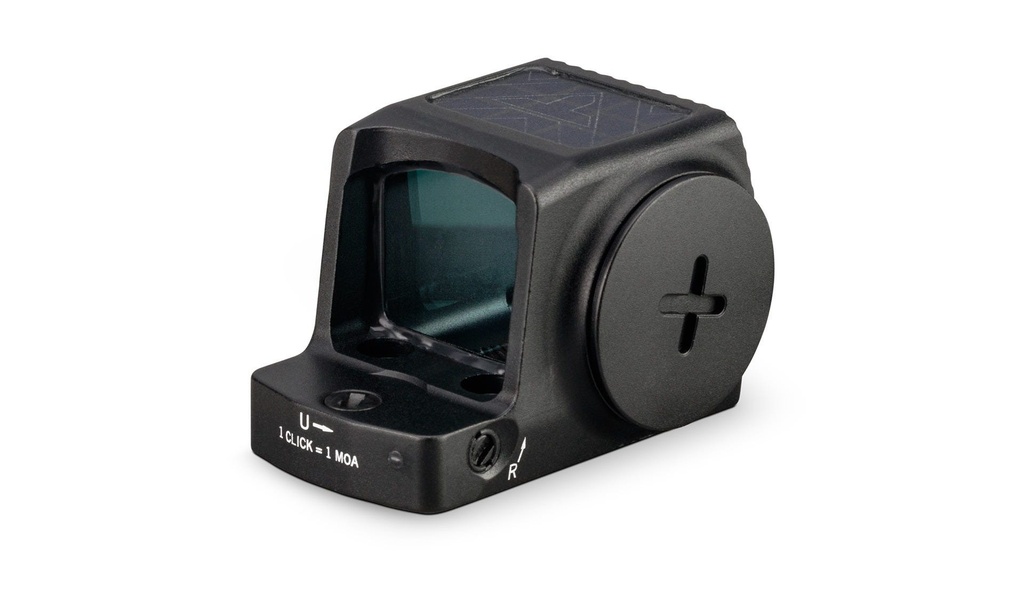

The emitter sits inside a fully enclosed 7075 aluminum housing, so debris and weather do not have a straight path to the diode. Solar with Auto D-TEC watches the light and pulls power from the panel or the CR2032 as needed. Side-load battery, so you are not pulling the optic to change it.
Reticle and Controls

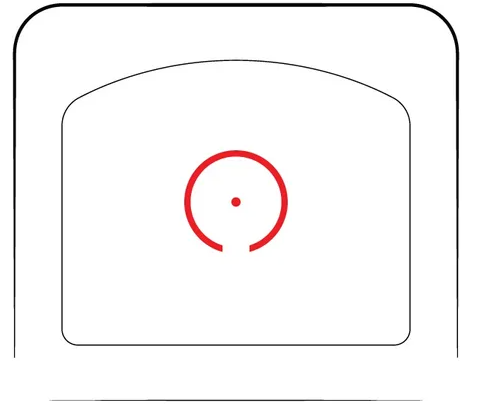

- Multi-reticle: 3 MOA dot, 32 MOA circle, or both. Ships on the 3 MOA dot.
- 12 illumination settings (10 daylight, 2 night-vision).
- Motion activation with a 10-minute auto-shutoff; button lockout so brightness does not walk in the holster.
- 1 MOA clicks; 30 MOA per rotation; max elevation 115 MOA, max windage 145 MOA.
What's in the Box
- Picatinny mount
- Custom tool and extended Torx T-10 bit
- Rubber cover
- Most common mounting screw sets
- CR2032 battery
- Lens cloth
- Glock MOS adapter plate
Vortex Defender-ST Enclosed Solar Specifications
| Manufacturer | Vortex Optics |
| Model | Defender-ST Enclosed Solar Micro Red Dot |
| SKU | DFST-MRD3-E |
| UPC | 843829142854 |
| Reticle | 3 MOA dot / 32 MOA circle (bright red) |
| Magnification | 1x |
| Eye Relief | Unlimited |
| Battery | CR2032 |
| Runtime @ setting 6 | 35,000 hrs without solar; up to 150,000 hrs with solar |
| Illumination | 12 settings (10 daylight, 2 NV) |
| Adjustment | 1 MOA; 30 MOA per rotation |
| Max elevation / windage | 115 MOA / 145 MOA |
| Parallax | Parallax free |
| Length | 1.82" |
| Weight | 1.62 oz |
| Housing | 7075 aluminum, enclosed |
| Footprint | DeltaPoint Pro |
| Other | Aspherical lens; Fast-Rack texturing; waterproof / fogproof / shockproof |
| Warranty | Vortex VIP Unlimited Unconditional Lifetime Warranty |
Frequently Asked Questions
Is this the 3 MOA enclosed solar model?
Yes. SKU DFST-MRD3-E is the enclosed-solar Defender-ST with the 3 MOA multi-reticle. This listing is that optic only.
What footprint is it?
DeltaPoint Pro. A Picatinny mount and a Glock MOS adapter plate are in the box.
Do I have to pull it to change the battery?
No. Vortex uses a side-load CR2032.
Does solar keep it running with a dead battery?
Auto D-TEC draws from solar or battery as light allows. Vortex rates setting 6 at 35,000 hours on battery and up to 150,000 hours with solar. Contact us if you need a specific solar-only scenario.
