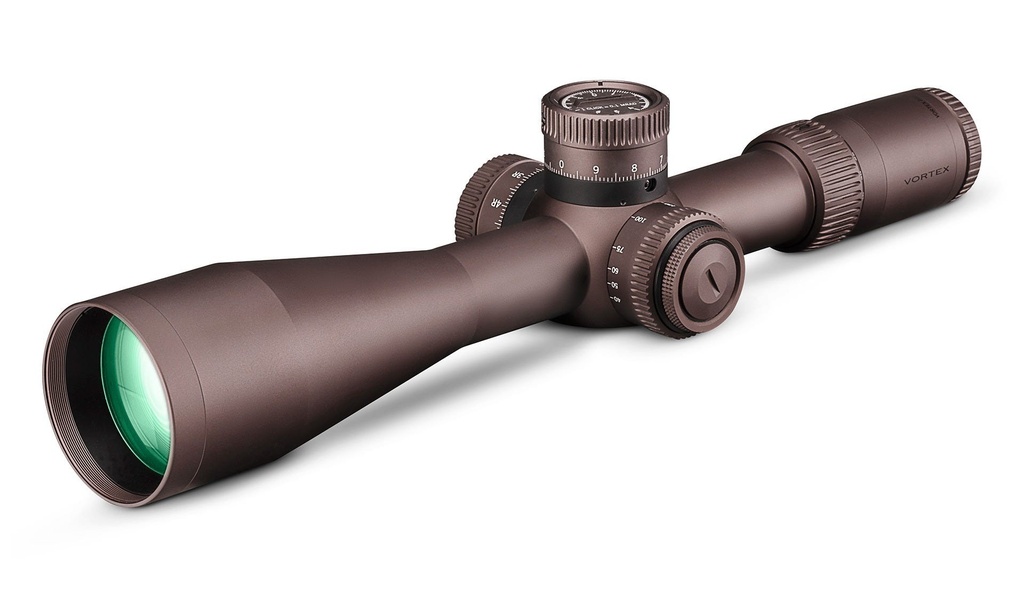

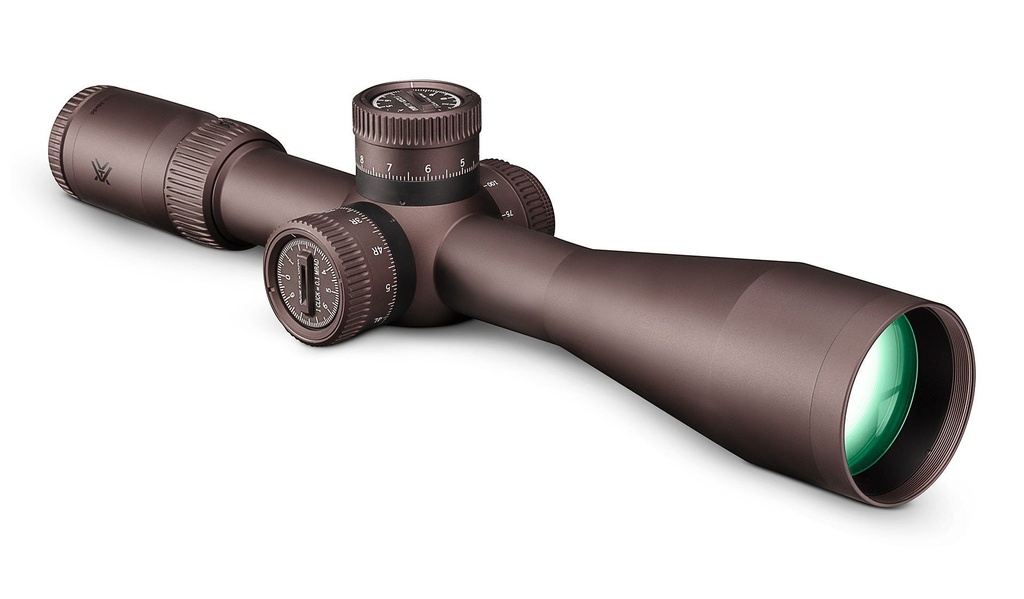

Vortex Razor HD Gen III 6-36x56 FFP – EBR-7D MRAD (RZR-63602)
The Razor HD Gen III 6-36x56 is Vortex’s long-range FFP scope for people who dial in MRAD: 6-36x on a 56 mm objective, first focal plane EBR-7D (MRAD) reticle, 34 mm tube, and exposed locking turrets with .1 MRAD clicks. Vortex lists 15.3" and 45.1 oz, with 36.1 MRAD elevation and 15.5 MRAD windage. Vortex part RZR-63602, UPC 843829120470.
This listing is for the 6-36x56 FFP EBR-7D MRAD configuration only.

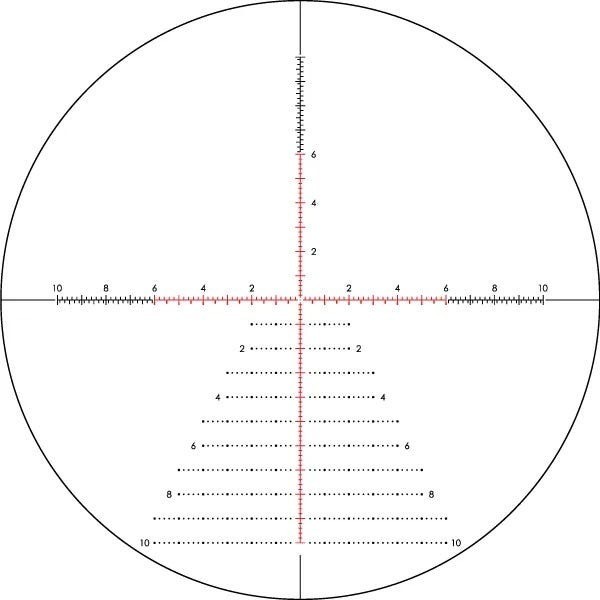

EBR-7D MRAD in the First Focal Plane
The EBR-7D keeps wind holds and ranging information available without cluttering the sight picture. Because it sits in the first focal plane, subtensions stay true at every magnification.
Turrets and Travel
- Exposed locking turrets
- .1 MRAD adjustment graduation
- 10 MRAD travel per rotation
- Max elevation 36.1 MRAD; max windage 15.5 MRAD
- Parallax 10 yards to infinity; eye relief 3.5"
- Field of view 20.5′–3.5′ at 100 yards
Vortex Razor HD Gen III Specifications
| Manufacturer | Vortex Optics |
| Model | Razor HD Gen III 6-36x56 FFP |
| Part Number | RZR-63602 |
| UPC | 843829120470 |
| Magnification | 6-36x |
| Objective Lens Diameter | 56 mm |
| Focal Plane | First Focal Plane |
| Reticle | EBR-7D (MRAD) |
| Eye Relief | 3.5" |
| Field of View | 20.5′ – 3.5′ @ 100 yds |
| Turret Style | Exposed Locking |
| Tube Size | 34 mm |
| Adjustment Graduation | .1 MRAD |
| Travel Per Rotation | 10 MRAD |
| Max Elevation Adjustment | 36.1 MRAD |
| Max Windage Adjustment | 15.5 MRAD |
| Parallax Setting | 10 yds – ∞ |
| Length | 15.3" |
| Weight | 45.1 oz |
| Warranty | Vortex VIP Warranty |
Frequently Asked Questions
Is this the MRAD or MOA version?
MRAD — EBR-7D MRAD with .1 MRAD clicks. Part RZR-63602.
First or second focal plane?
First focal plane.
Which Razor is this listing?
6-36x56 FFP EBR-7D MRAD only — part RZR-63602.
Internal Reference:
RZR-63602
Barcode:
843829120470
