Vortex Viper 6.5-20x50 – SFP Mil-Dot MOA (VPR-M-06MD)
A 6.5-20x50 Viper with the second-focal-plane Mil-Dot reticle and MOA turrets: 30mm single-piece tube, tall capped 1/4 MOA clicks, 21.6 ounces, side-focus parallax from 50 yards to infinity. Dot subtensions are true at 14x — Vortex puts a mark on the magnification ring for that. Vortex part VPR-M-06MD, UPC 875874001848.
This listing is for the Viper 6.5-20x50 SFP Mil-Dot MOA only.

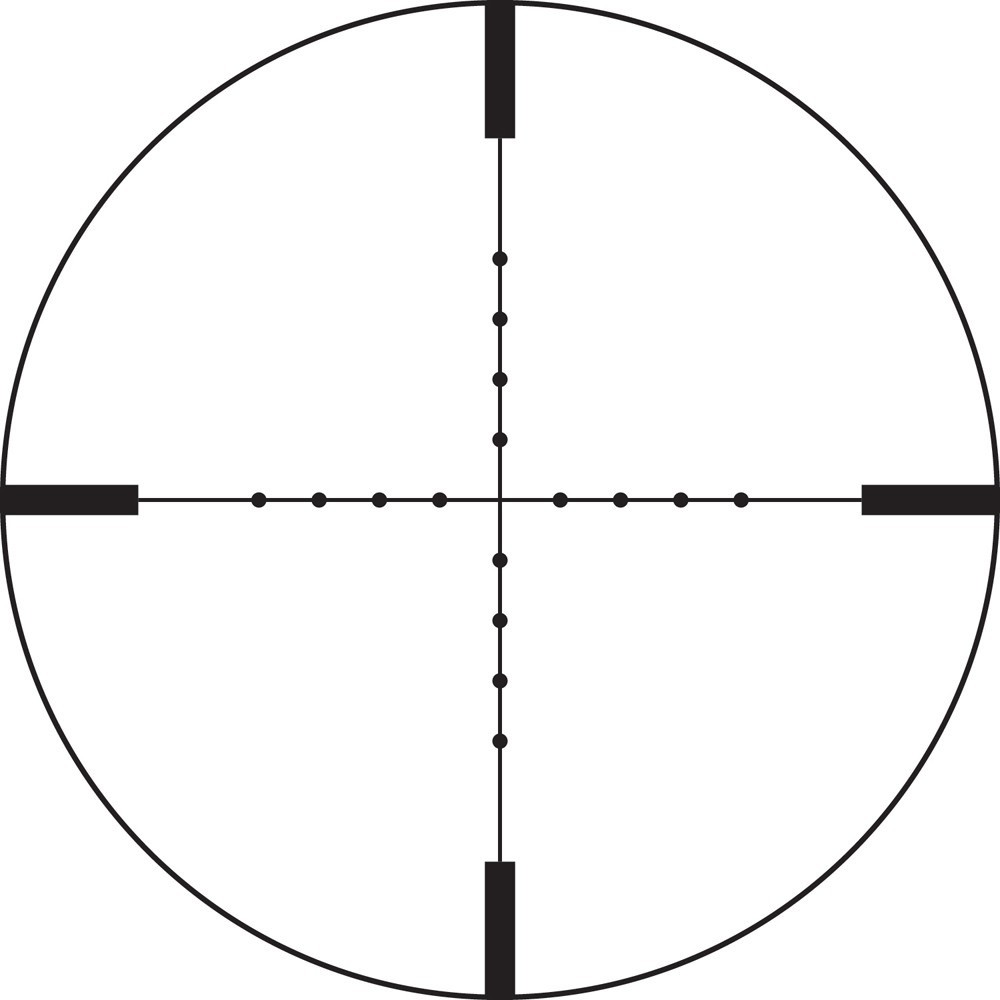

Mil-Dot, Second Focal Plane
The reticle stays the same size as you zoom. Vortex lays the Mil-Dot out in milliradians and the turrets in MOA. For ranging, holdover, and wind, set the scope to 14x; the center crosshair can be used at any power. Vortex describes this reticle as a ranging tool for long-distance shooters and hunters.
Glass and Tube
XD extra-low-dispersion glass and XR fully multi-coated lenses, with 95 percent light transmission. The tube is a single-piece, 30mm, aircraft-grade aluminum tube with a hard-anodized matte finish. ArmorTek on the exterior lenses. O-ring sealed and argon purged — waterproof and fogproof — and built shockproof. Precision-Force springs in the erector and a Precision-Glide zoom.
Turrets and Parallax
- Tall capped reset turrets: 1/4 MOA per click, 12 MOA per rotation, 65 MOA elevation and windage.
- Caps on; pull the dial to re-index to zero with no tool after you sight in.
- Side-focus parallax, 50 yards to infinity, with the numbers readable from the shooting position.

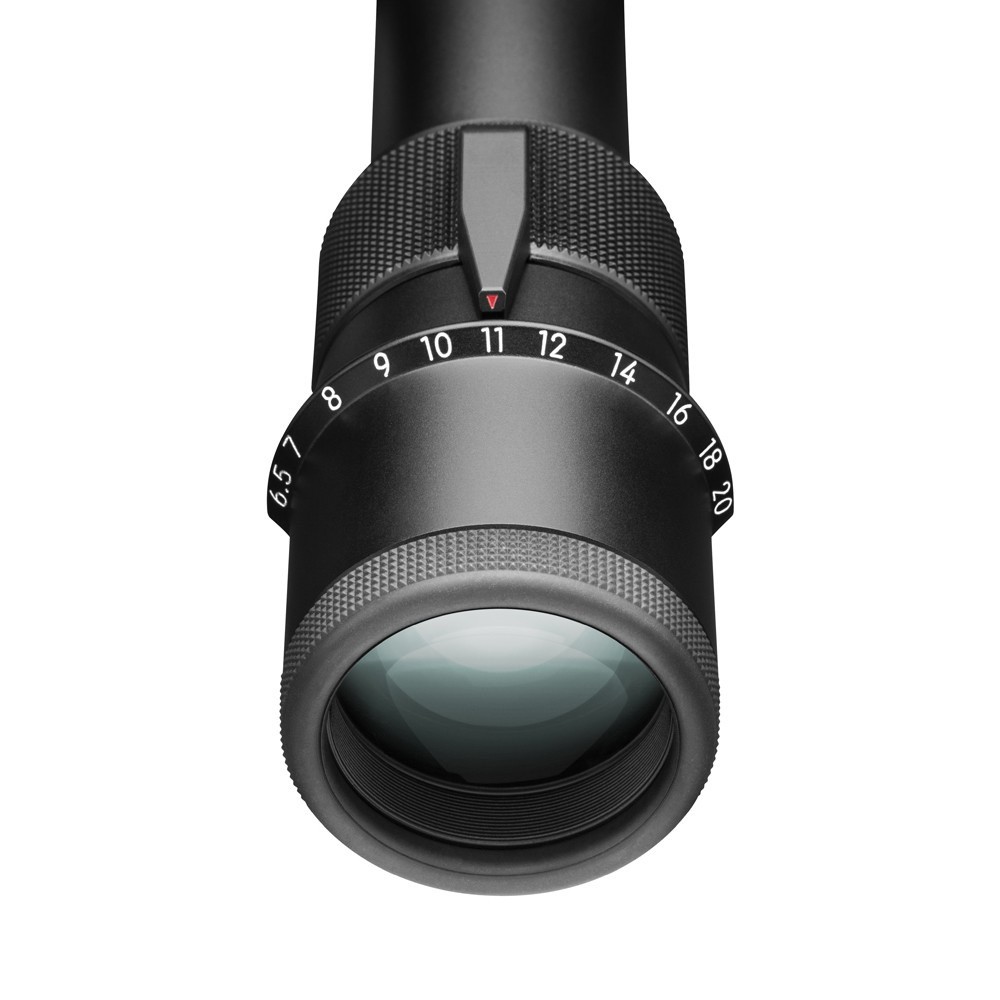

- Fast-focus eyepiece and a MAG-Bar on the power ring. Eye relief 3.1 inches. Field of view 17.4–6.2 ft at 100 yards.
What's in the Box
- Removable lens covers
- Lens cloth
Vortex Viper 6.5-20x50 Specifications
| Manufacturer | Vortex Optics |
| Model | Viper 6.5-20x50 SFP, Mil-Dot MOA |
| Part Number | VPR-M-06MD |
| UPC | 875874001848 |
| Magnification | 6.5-20x |
| Objective Lens Diameter | 50 mm |
| Focal Plane | Second Focal Plane |
| Reticle | Mil-Dot (MRAD reticle / MOA turrets) |
| Reticle calibration | 14x (mark on magnification ring) |
| Tube Size | 30 mm, single-piece aircraft-grade aluminum |
| Turret Style | Tall capped, resettable |
| Adjustment Graduation | 1/4 MOA |
| Travel Per Rotation | 12 MOA |
| Max Elevation Adjustment | 65 MOA |
| Max Windage Adjustment | 65 MOA |
| Parallax Setting | 50 yards to infinity, side focus |
| Eye Relief | 3.1 inches |
| Field of View | 17.4-6.2 ft / 100 yards |
| Length | 14.44 inches |
| Weight | 21.6 oz |
| Glass | XD extra-low dispersion; XR fully multi-coated |
| Exterior lens coating | ArmorTek |
| Sealing | O-ring waterproof; argon-purged fogproof; shockproof |
| Finish | Hard anodized matte |
| Warranty | Vortex VIP Unlimited, Unconditional, Lifetime |
Frequently Asked Questions
Is this the Mil-Dot reticle?
Yes. VPR-M-06MD is the second-focal-plane Mil-Dot with MOA turrets. Subtensions are calibrated at 14x.
Do the turrets match the reticle?
No. Vortex lays the Mil-Dot out in milliradians and the capped turrets in 1/4 MOA.
What comes in the box?
Vortex lists removable lens covers and a lens cloth. Rings and a mount are not included.
Is it waterproof?
Yes. Vortex specifies O-ring seals and argon purging, plus a shockproof single-piece 30mm tube.
What is the warranty?
Vortex VIP: unlimited, unconditional, lifetime. Vortex does not require registration or a receipt.
