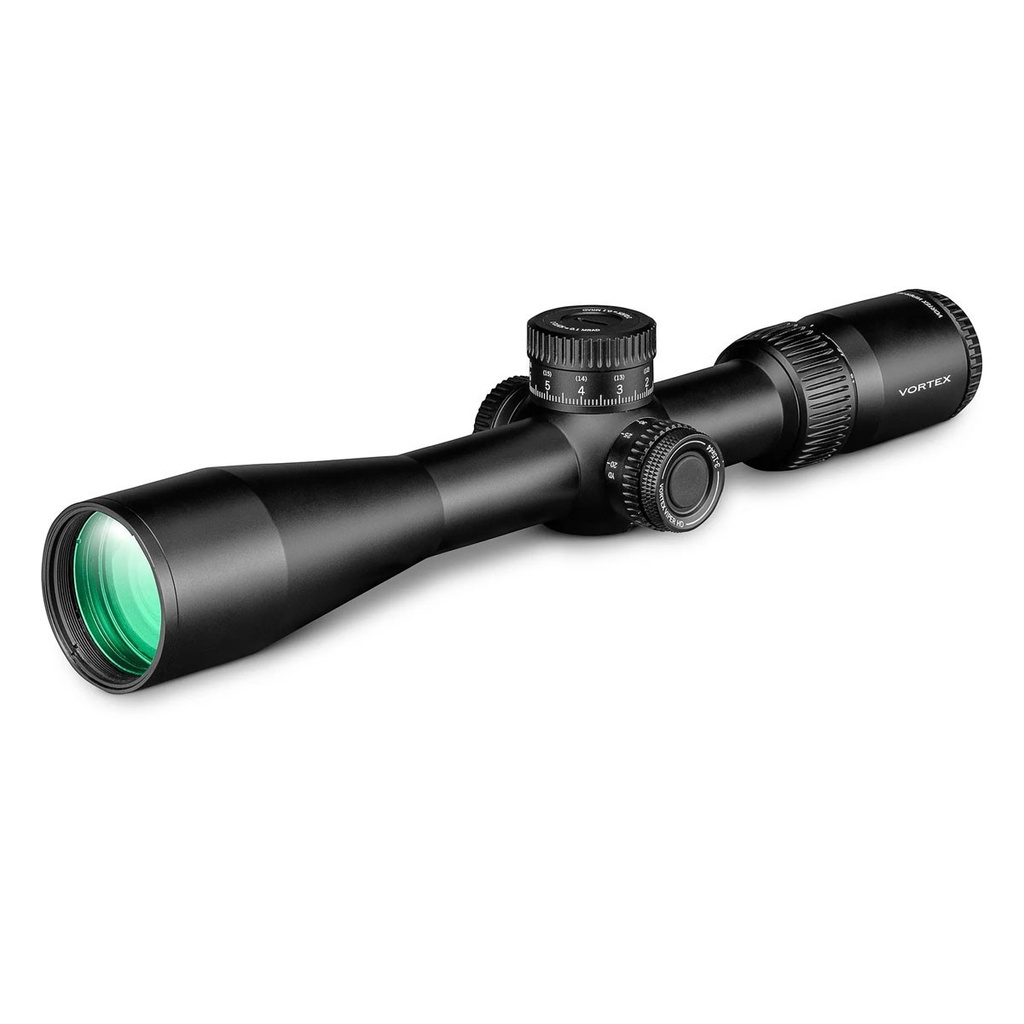

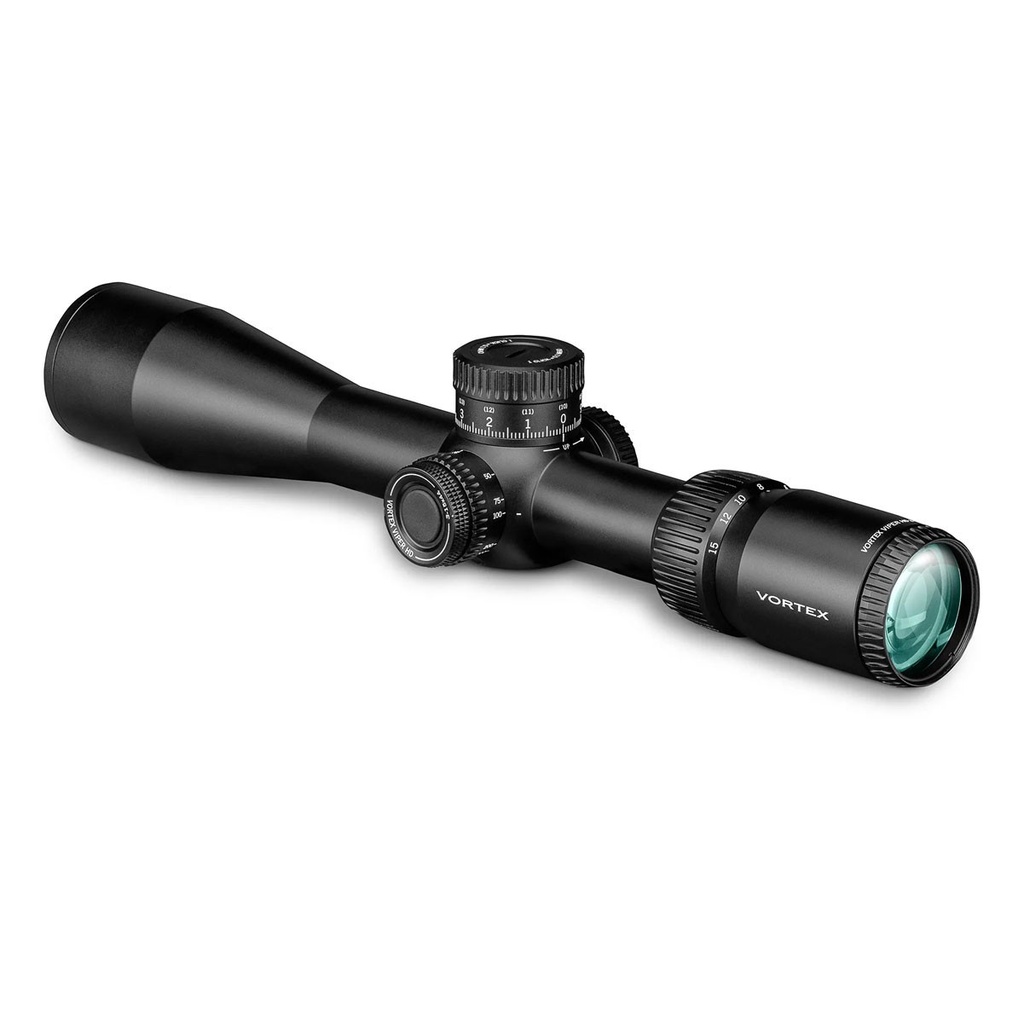

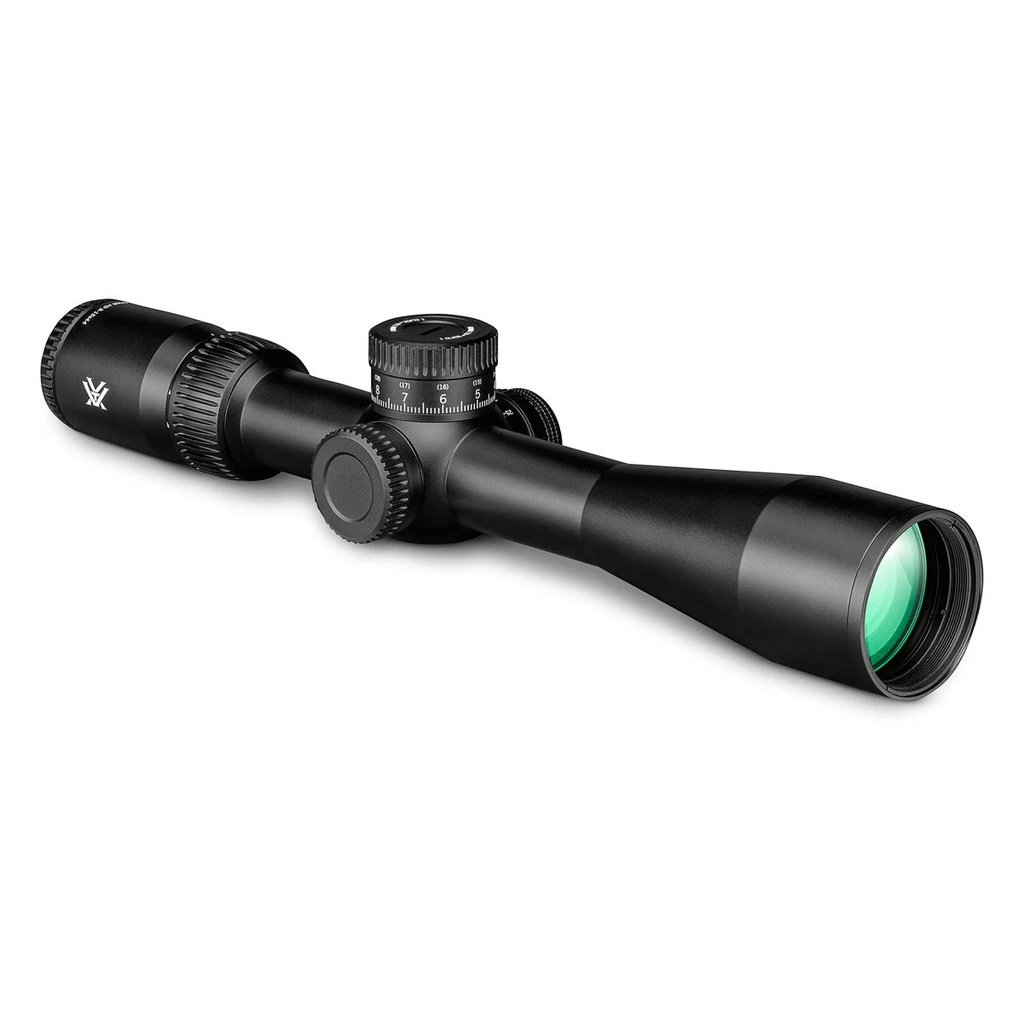

Vortex Viper HD 3-15x44 – SFP, Illuminated VMR-3 (MRAD), 30mm (VPR-31503)
The Viper HD 3-15x44 is Vortex's hunting riflescope in this second focal plane configuration with an illuminated VMR-3 (MRAD) reticle, 30mm tube, locking exposed elevation / capped windage, and RevStop zero. This listing is this reticle and focal plane only — Vortex SKU VPR-31503, UPC 843829136945.
This Reticle and Focal Plane Only
This SKU is the 3-15x44 with SFP illuminated VMR-3 (MRAD). Vortex designed the VMR-3 for ranging, holdovers, windage corrections, and moving-target leads, with fine center crosshair subtensions balanced for precision and low-light visibility.
Optics and Turrets
- HD optical system — Vortex family copy: image clarity, resolution, and sharpness for hunting from predators to big game
- Illuminated reticle — 10 illumination settings (Vortex Viper HD FAQ)
- Turrets: locking exposed elevation, capped windage
- RevStop zero system; total elevation with RevStop installed 18.9 MRAD
- Adjustment 0.1 MRAD; travel per rotation 10 MRAD
- Max elevation 30.5 MRAD; max windage 27 MRAD
- Parallax 20 yds – ∞
Vortex Viper HD 3-15x44 Specifications
| Manufacturer | Vortex Optics |
| Model | Viper HD 3-15x44, SFP, VMR-3 (MRAD) |
| SKU | VPR-31503 |
| UPC | 843829136945 |
| Magnification | 3-15x |
| Objective Lens Diameter | 44 mm |
| Focal Plane | Second Focal Plane |
| Reticle | Illuminated VMR-3 (MRAD) |
| Illumination Settings | 10 |
| Eye Relief | 3.4" |
| Field of View | 39.9′ – 8.0′ @ 100 yds |
| Turret Style | Locking exposed elevation, capped windage |
| Tube Size | 30 mm |
| Adjustment Graduation | 0.1 MRAD |
| Travel Per Rotation | 10 MRAD |
| Max Elevation Adjustment | 30.5 MRAD |
| Total Elevation w/ RevStop installed | 18.9 MRAD |
| Max Windage Adjustment | 27 MRAD |
| Parallax Setting | 20 yds – ∞ |
| Length | 13.2" |
| Weight | 22.5 oz |
| Warranty | Vortex VIP Warranty — unlimited, unconditional, lifetime |
Frequently Asked Questions
Is this second focal plane?
Yes. VPR-31503 is SFP with illuminated VMR-3 (MRAD).
What are the click values?
0.1 MRAD per click; 10 MRAD per rotation.
Does it have a zero stop?
Yes — Vortex RevStop. With RevStop installed, total elevation adjustment is 18.9 MRAD.
What is the weight?
22.5 oz, per Vortex specifications for this configuration.
Internal Reference:
VPR-31503
Barcode:
843829136945
